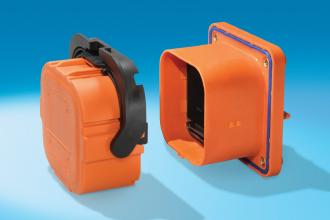

TE's AMP+ manual service disconnect provides protection to service technicians and emergency response teams working with high voltage electric vehicles. The tool-free disconnect utilizes a finger-actuated, two-stage lever to open the HVIL circuit prior to separation of HV contacts. The disconnecting solution protects the battery pack HV cables from short circuiting. The disconnect is scalable and is available in a variety of fuse ratings. All of the HV conducting surfaces on the receptacle assembly are finger-proof and touch-safe. The disconnect is tested to 50 mating cycles and is RoHS compliant. The AMP+ manual service disconnect also meets USCAR-2, USCAR-37, and IEC 60529 standards and specifications.
Plug Assembly
2103172-8 fuse rating 200A
2103172-9 fuse rating 250A
1-2103172-1 fuse rating 350A
1-2103172-2 fuse rating 350A
1-2103172-7 shunt
1-2103172-8 fuse rating 200A
1-2103172-9 fuse rating 250A
2-2103172-2 fuse rating 350A
2-2103172-7 shunt
2-2103172-8 fuse rating 200A
2-2103172-9 fuse rating 250A
Receptacle Assembly
1-1587987-1 fuse Rating 350A
1-1587987-3 fuse Rating 250A with divider rib notch
1-1587987-4 fuse rating 630A
1-1587987-5 fuse Rating 350A with divider rib notch
1-1587987-7 shunt
1587987-8 fuse rating 200A
1587987-9 fuse rating 250A
Cover Assembly
2103234-2 orange service cap
Sealed
Finger actuated - 2 stage lever assist latching
No tool required to unmate
2x integrated internal HVIL
Scalable design
Current rating determined by fuse selection and limited to 240 Amps maximum continuous current at 65C ambient temperature.
Fuse rating up to 630A
Shunt (no fuse) version available
USCAR-2, USCAR-37, IEC 60529, RoHS compliant
Tested to 50 mating cycles
