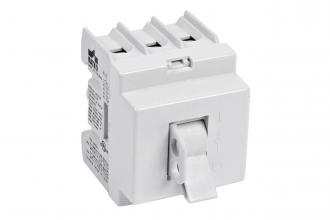

16-125A KUE series toggle switches ensure safe and durable operation through the silver contacts switch technology. Compact in size, the KUE series are din rail mountable, available to order with an additional adapter to connect the switch top three different connection heights.
| Type | AC-21 | 400 V | AC-22 | 400 V | AC-23 | AC-23 | EAN-Code | ||
| 415 V | 415 V | 400 V | 690 V | ||||||
| 690 V | 690 V | 415 V | |||||||
| Model | Ie / A | Ie / A | Ie / A | Ie / A | |||||
| KUE 316 | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410200308 | ||
| KUE 325 | 40 A | 25 A | 25 A | 11 kW | 20 A | 15 Kw | 6419410200407 | ||
| KUE 340 | 63 A | 40 A | 25 A | 11 kW | 20 A | 15 Kw | 6419410200506 | ||
| KUE 363 | 80 A | 63 A | 40 A | 22 kW | 32 A | 30 Kw | 6419410200506 | ||
| KUE 380 | 100 A | 80 A | 63 A | 30 kW | 32 A | 30 kW | 6419410200704 | ||
| KUE 3125 | 125 A | 125 1) / 80 2) A | 63 A | 30 kW | 32 A | 30 Kw | 6419410200902 | ||
| KUE 316 + AD1 + K/KUE | 25 A | 16 A | 16 A | 7.5 kW | 16 A | 11 kW | 6419410200322 | ||
| KUE 325 + AD1 + K/KUE | 40 A | 25 A | 25 A | 11 kW | 20 A | 15 Kw | 6419410200421 | ||
| KUE 340 + AD1 + K/KUE | 63 A | 40 A | 25 A | 11 kW | 20 A | 15 Kw | 6419410200520 | ||
| KUE 363 + AD1 + K/KUE | 80 A | 63 A | 40 A | 22 kW | 32 A | 30 Kw | 6419410200629 | ||
| KUE 380 + AD1 + K/KUE | 100 A | 80 A | 63 A | 30 kW | 32 A | 30 kW | 6419410200728 | ||
| KUE 3125 + AD1 + K/KUE | 125 A | 125 1) / 80 2) A | 63 A | 30 kW | 32 A | 30 Kw | 6419410200834 | ||
Compact size
DIN-rail mounting
3-pole
Switch technology by means of silver contacts ensures safe and durable operation
Available with adapter to connect the switch to a three-phase section rail. Three different connection heights
Tested according to IEC 60947-3
