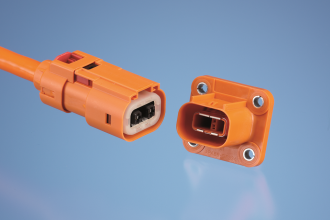

TE's AMP+ low-medium current connectors and headers HVA 280 are finger-proof, touch-safe. Available in 2 or 3 position connectors and headers. They are designed for great flexibility for hybrid and electric vehicle device applications. The connector system provides multiple latching options and an integrated internal HVIL, allowing for package size optimization and routing flexibility. In addition, the HVA 280 product family includes a discrete header design unique to the industry that improves packaging and manufacturing efficiency with a two-stage floating latch that creates safety in the system. The HVA 280 family offers over 3,000 combination options providing solutions for a wide variety of device and wire harness applications like battery pack, DC/DC converter, on-board charger, electric header and high voltage power distribution.
| Options | Reference Plug P/N | Reference Mating Header P/N | Reference Mating In-line P/N | Application Specification |
| 2 Position Individually Shielded Cable | ||||
| Tool Actuated | 2103176 | 1587831-X 1587975-X 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13259 |
| Finger Actuated | 2103176 | 1587831-X 1587975-X 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13259 |
| 2 Position Multi-Core Shielded Cable | ||||
| Shunted HVIL | ||||
| Tool Actuated | 2103014 | 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13305 |
| Finger Actuated | 2103014 | 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13305 |
| Pass-Thru HVIL | ||||
| Tool Actuated | 2103163 | 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13310 |
| Finger Actuated | 2103163 | 2103124-X | 2103220-X 2103221-X 2103219-X | 114-13310 |
| 3 Position Multi-Core Shielded Cable | ||||
| Tool Actuated | 2103197 | 1587727-X 1587973-X | N/A | 114-13253 |
| Intelligent Plug | ||||
| Finger Actuated | 2103149 | 1587831-X 1587975-X 2103124-X | 2103220-X 2103221-X 2103219-X | N/A |
Finger proof, touch safe
Two stage unlatching for effective HVIL functionality
Common package size for 2 & 3 position connections
Common header footprint for multi-core and individual shielded wires
Common plug that will mate to header and/or in line system
Discrete and multi-bay headers
One piece plastic header
Shunted or pass through HVIL feature provides flexibility in system design
Unmate using tool or finger
