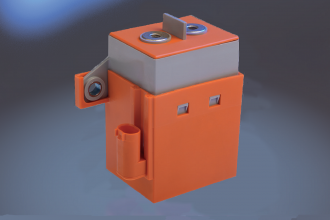

The EVC 250 contactor features larger contact gaps and optimized switching dynamics. It features high-performance arc suppressing magnets to effectively control the switching arc. The contactor achieves continuous current ratings of 250A, which ensures a safe short-circuit carry capability of 6,000A and complies with switching requirements in hybrid and electric vehicles. Service replacement due to pressure loss or gas leaking is no longer necessary.
| Product code | V23720-A0001-A001 | V23720-A0002-A001 |
| Cont. arrang. | SPDT-NO-DM | SPDT-NO-DM |
| Coil | 12VDC | 12VDC |
| Circuit | No economizer | Coil switch |
| Coil suppr. | External >70V | Internal |
| Prot. class | IP54 | IP54 |
| Resistance | 4Ω | Double coil 3/36Ω |
| Part number | 2-1904058-5 | 2-1904058-7 |
Compact high voltage main contactor
Works without pressurized contact chamber
Voltage rating up to 450VDC
250A continuous current rating
Short circuit carry currents up to 6,000A
Limiting break currents up to 2,000A
Not position sensitive, can be mounted in any orientation
Available with dual coil (internal switch) and single coil (external pwm required)
